Maschine MK2 Maintenance Guide: Enhance Your Audio Production

Why Maintain Your Maschine MK2?

The Maschine MK2 drum pad is an essential tool for filmmakers in audio production. However, like any equipment, it may require some upkeep over time. Dust accumulation and minor performance glitches can occur, especially if you’ve bought a second-hand unit or used yours for some time with this Maschine MK2 maintenance guide. Similarly to my RME Fireface repair tutorial you should take your time and read the entire guide before cracking anything open so you can be sure you are ready.

Preparing for Maschine MK2 Maintenance

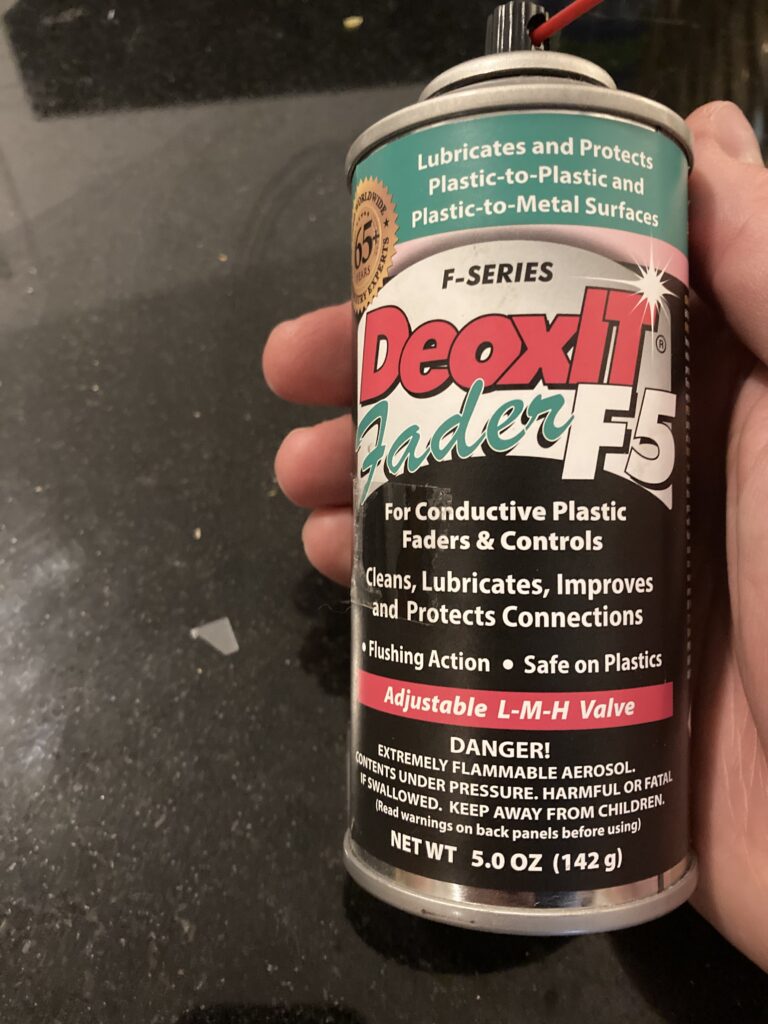

Before beginning the cleaning and disassembly of your Maschine MK2, gather these tools: a large and small Phillips screwdriver, 99% alcohol, paper towels, light soapy water, and Deoxit fader. The Deoxit fader, while slightly expensive, is essential for cleaning and conditioning pots and faders, ensuring your encoder functions optimally.

Cleaning and Disassembly Process

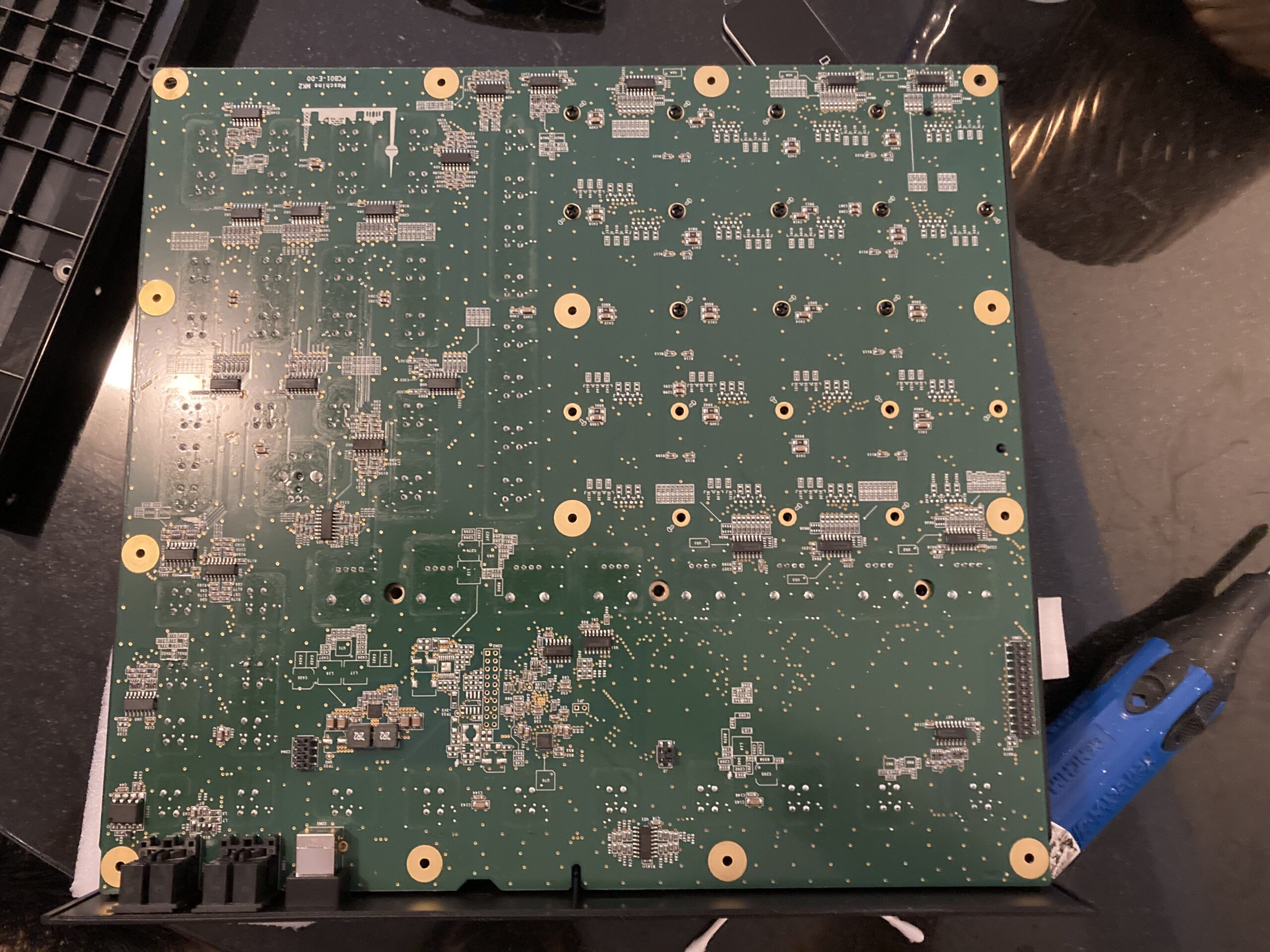

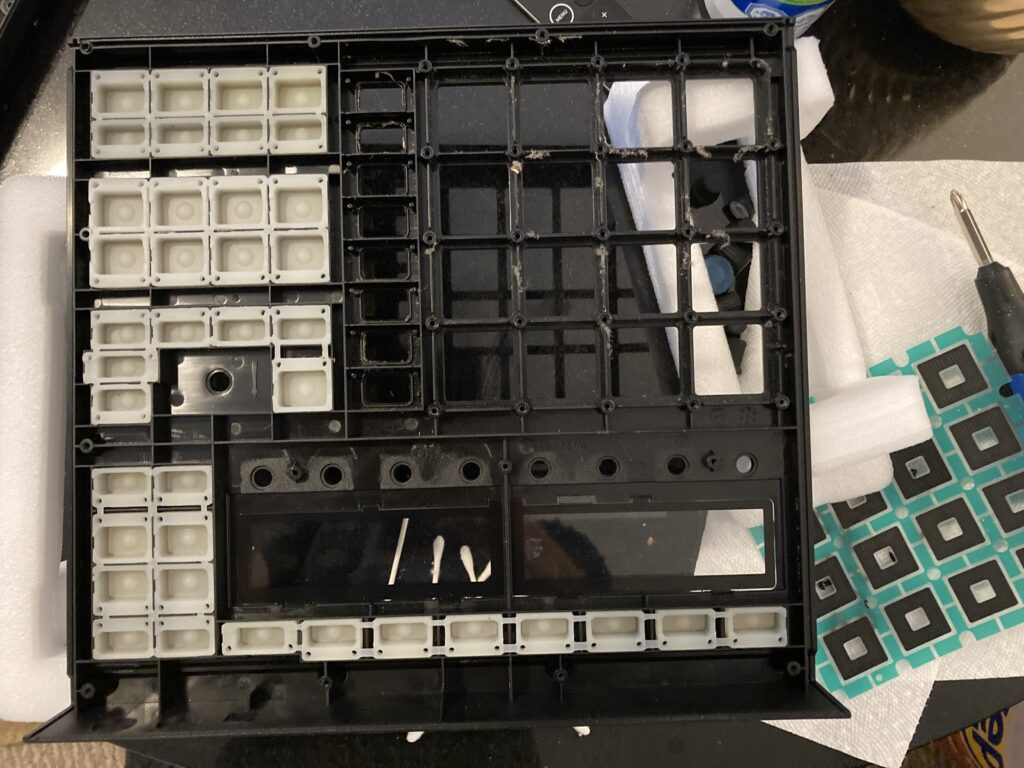

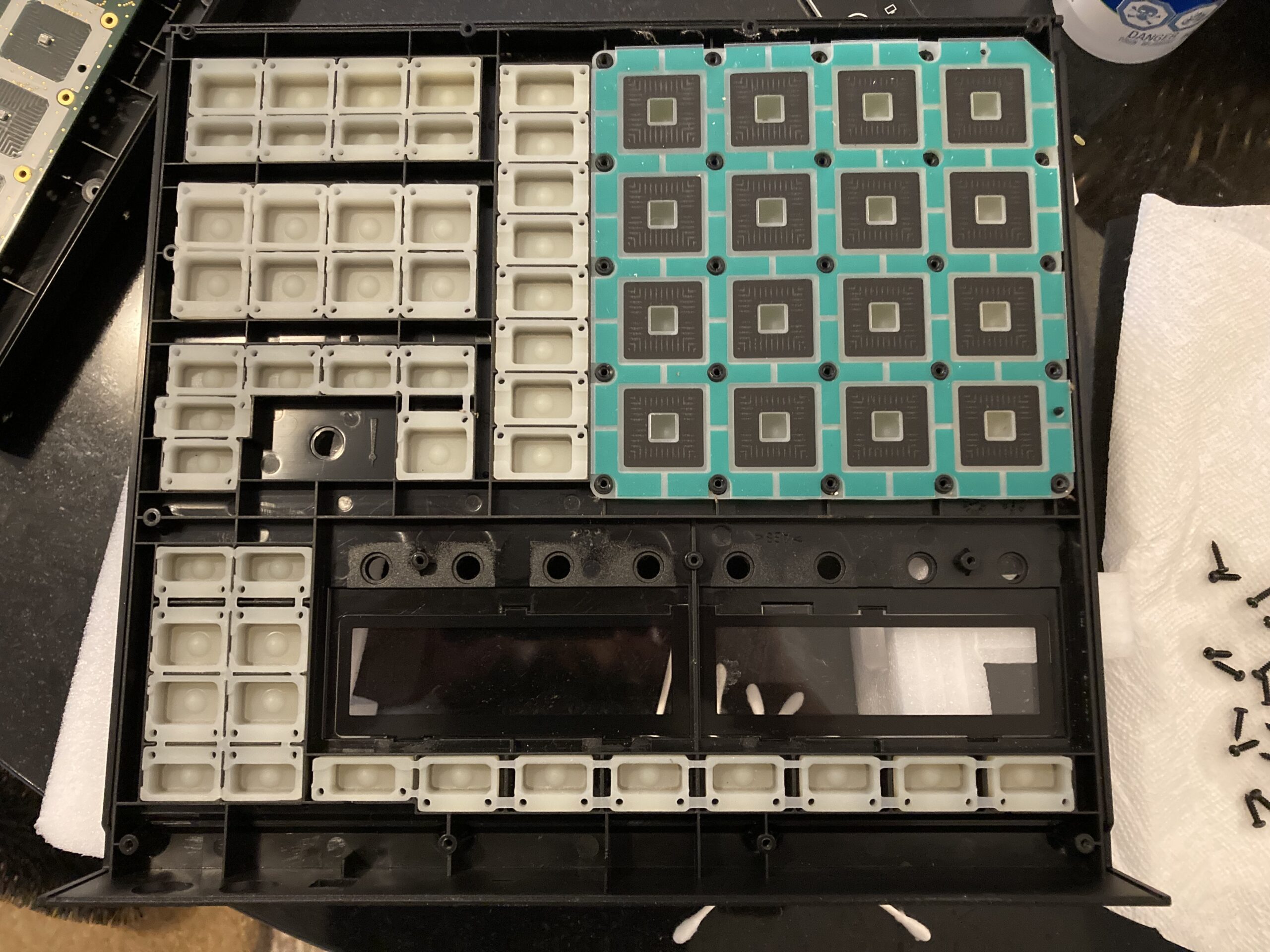

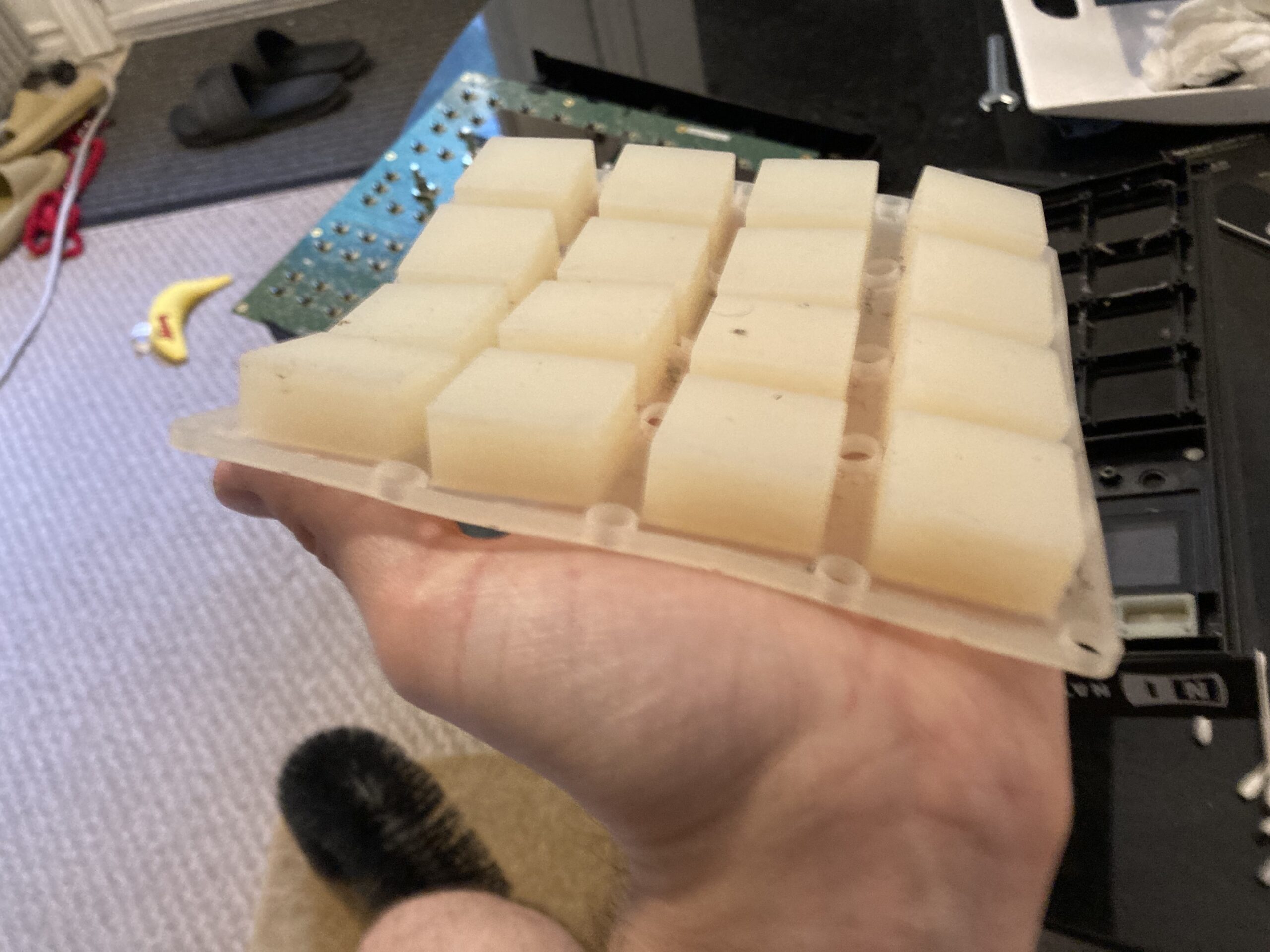

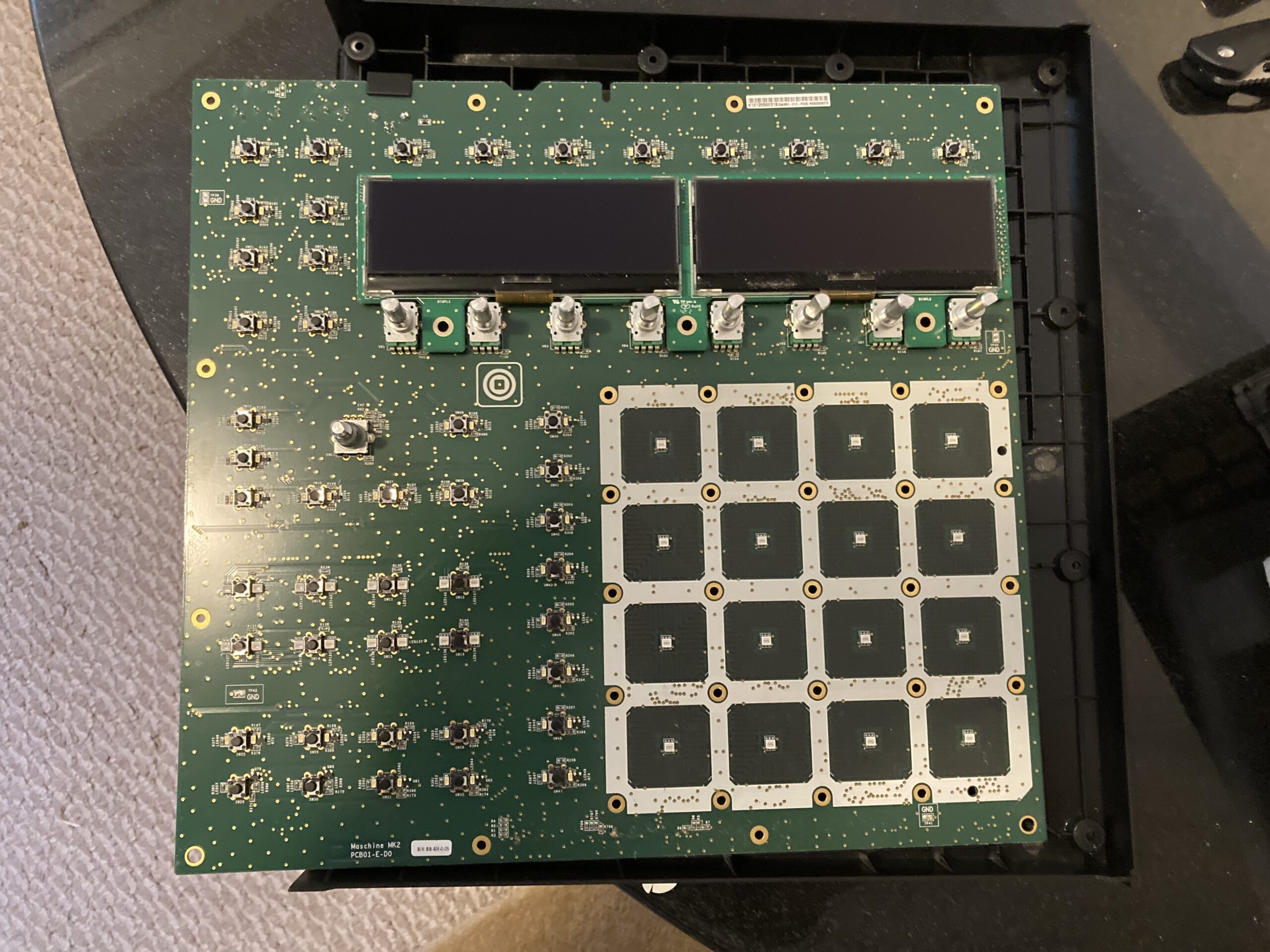

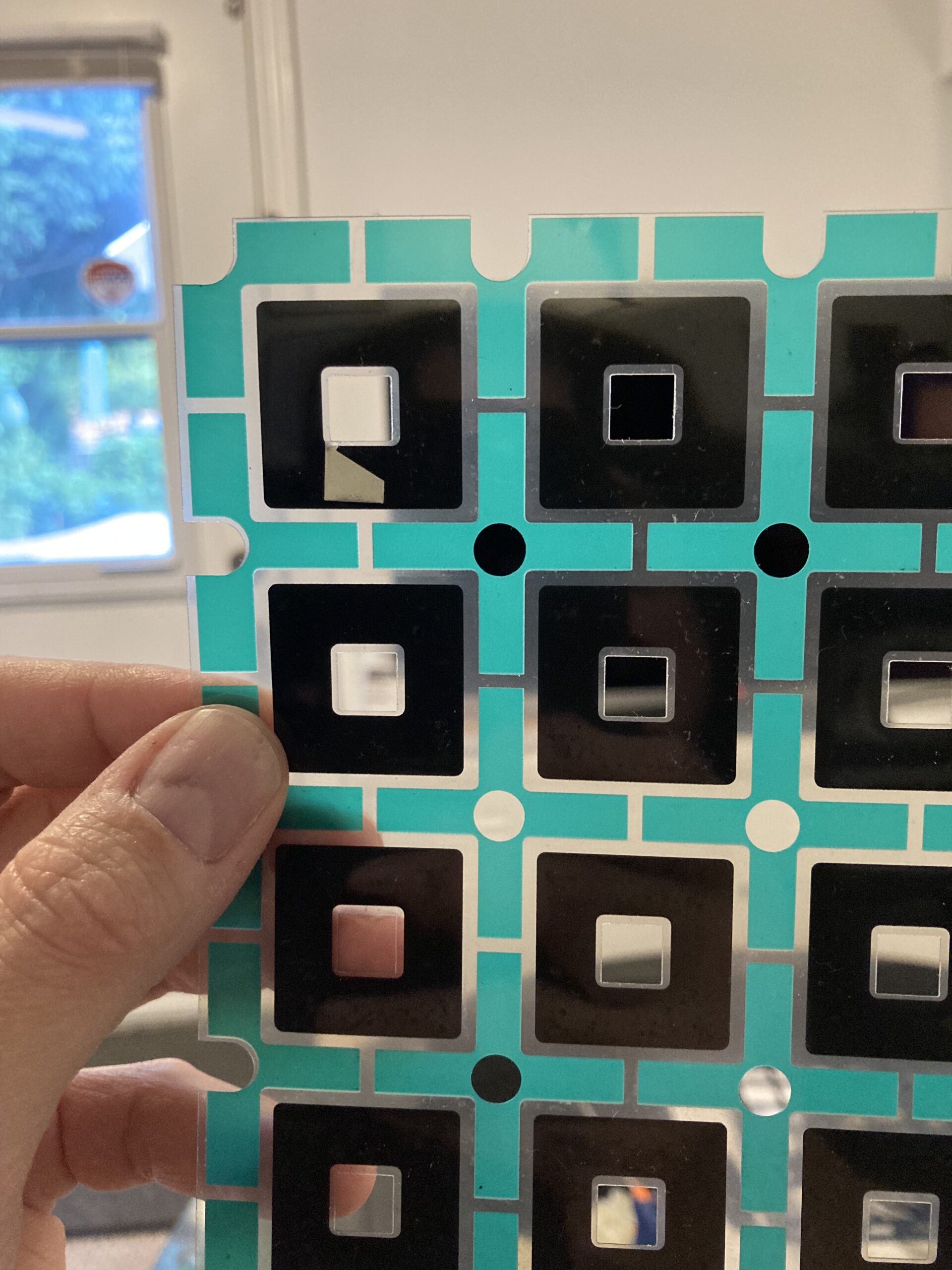

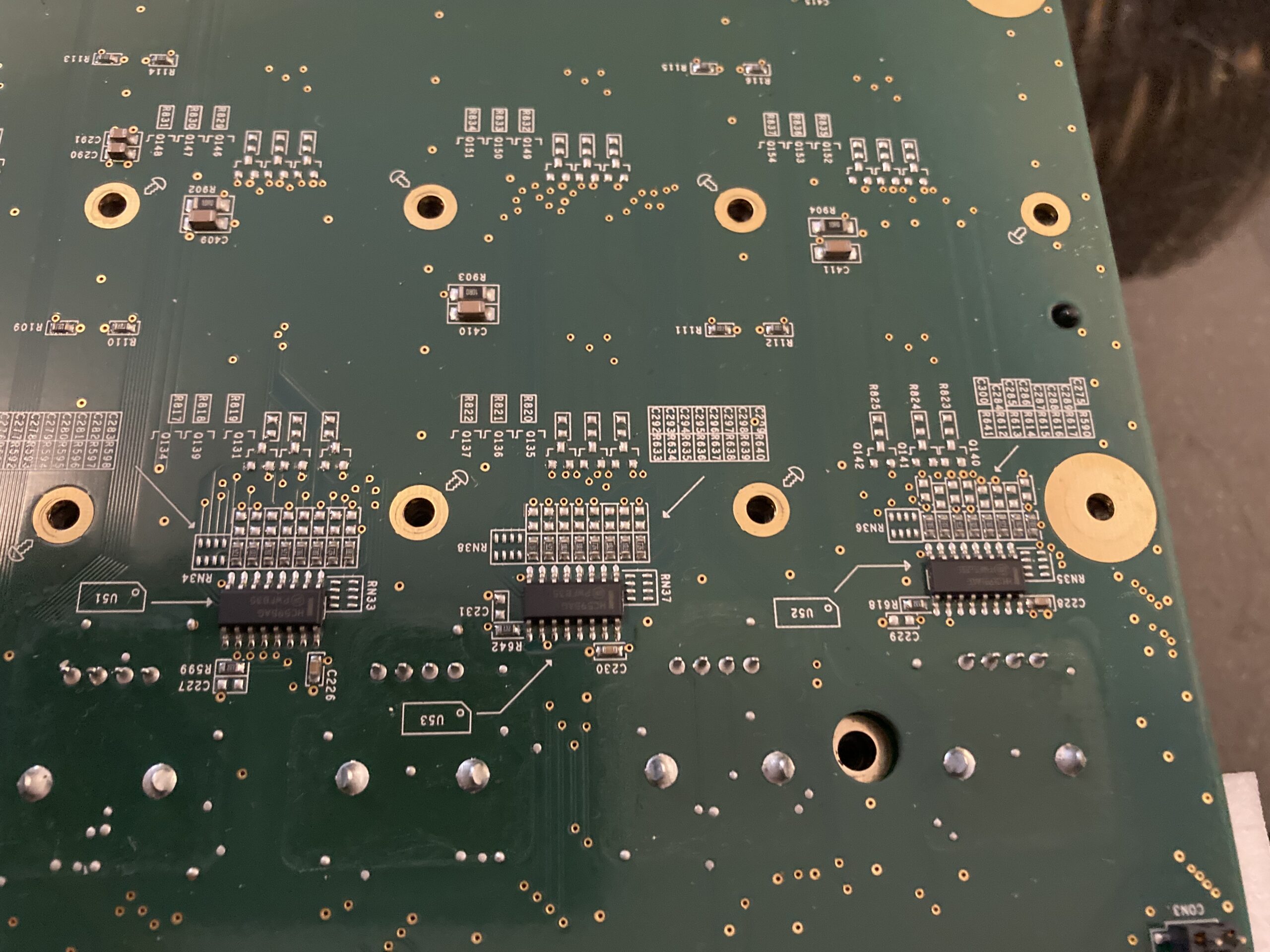

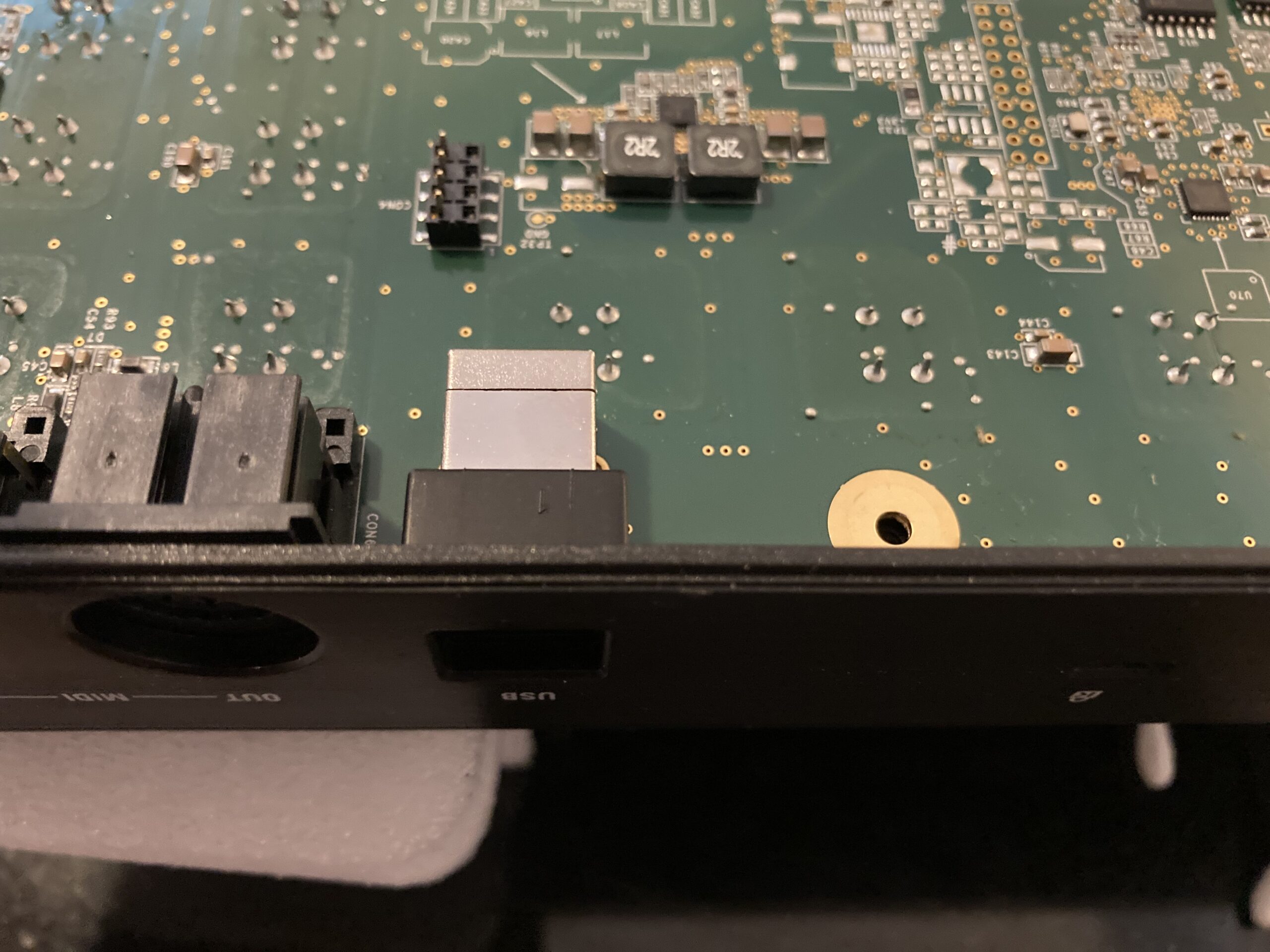

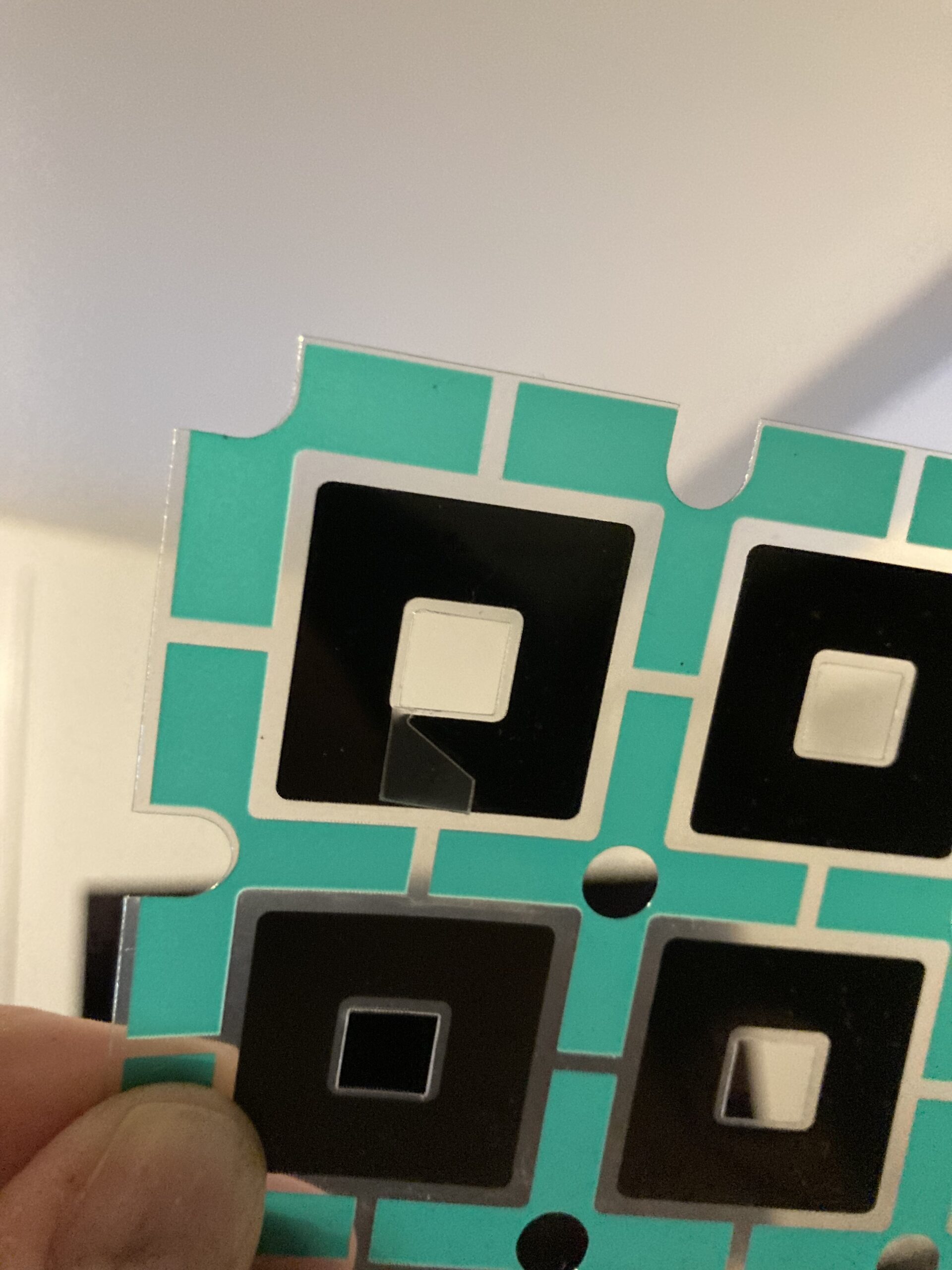

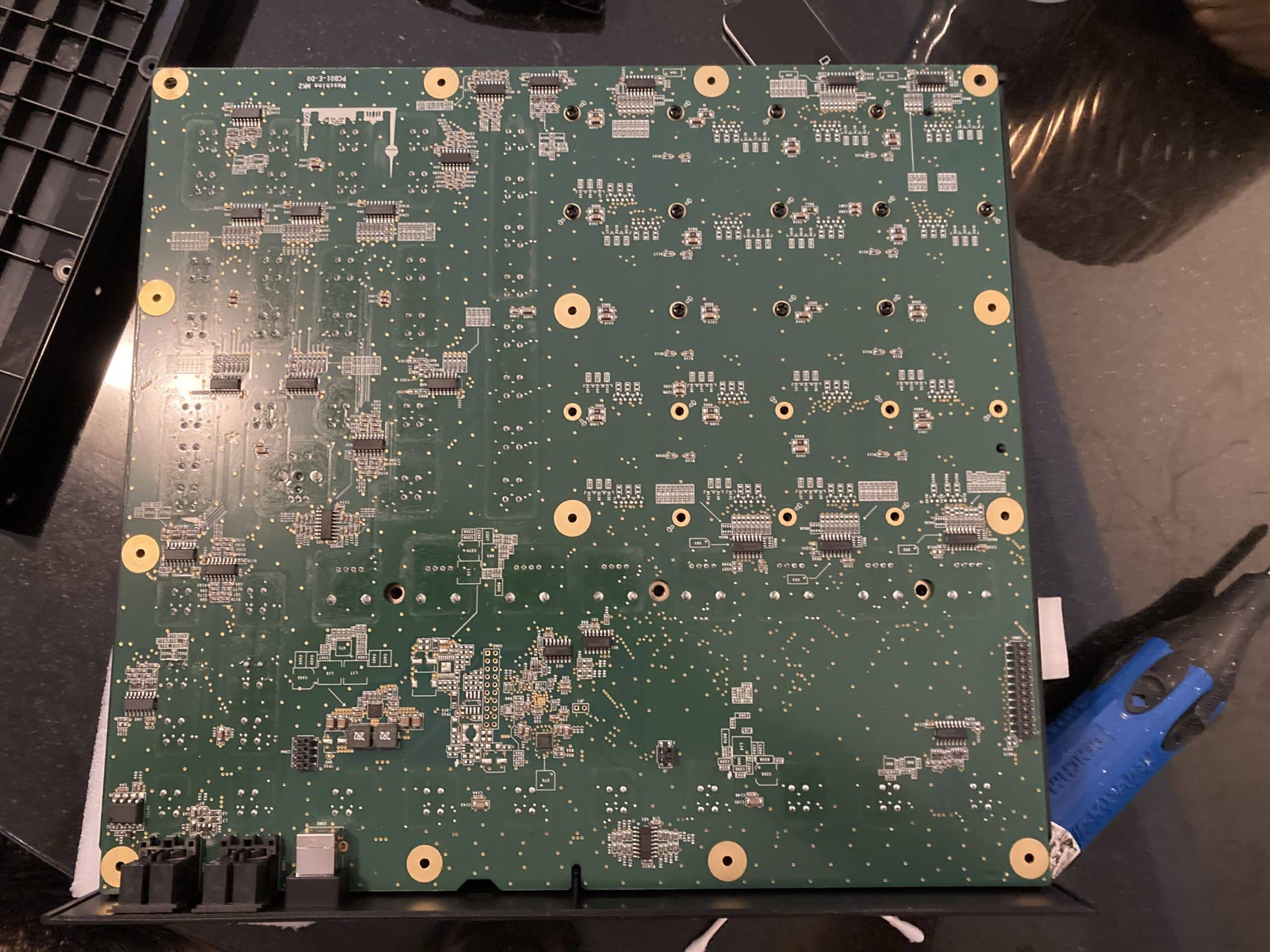

Start by removing the 14 screws from the bottom of the Maschine MK2. Once the bottom plate is off, you’ll see more screws holding the board to the face. Make sure you spot three smaller, unmarked screws beneath the displays. After removing all screws, lift out the board to reveal the pads, carbon sheet, and sensors.

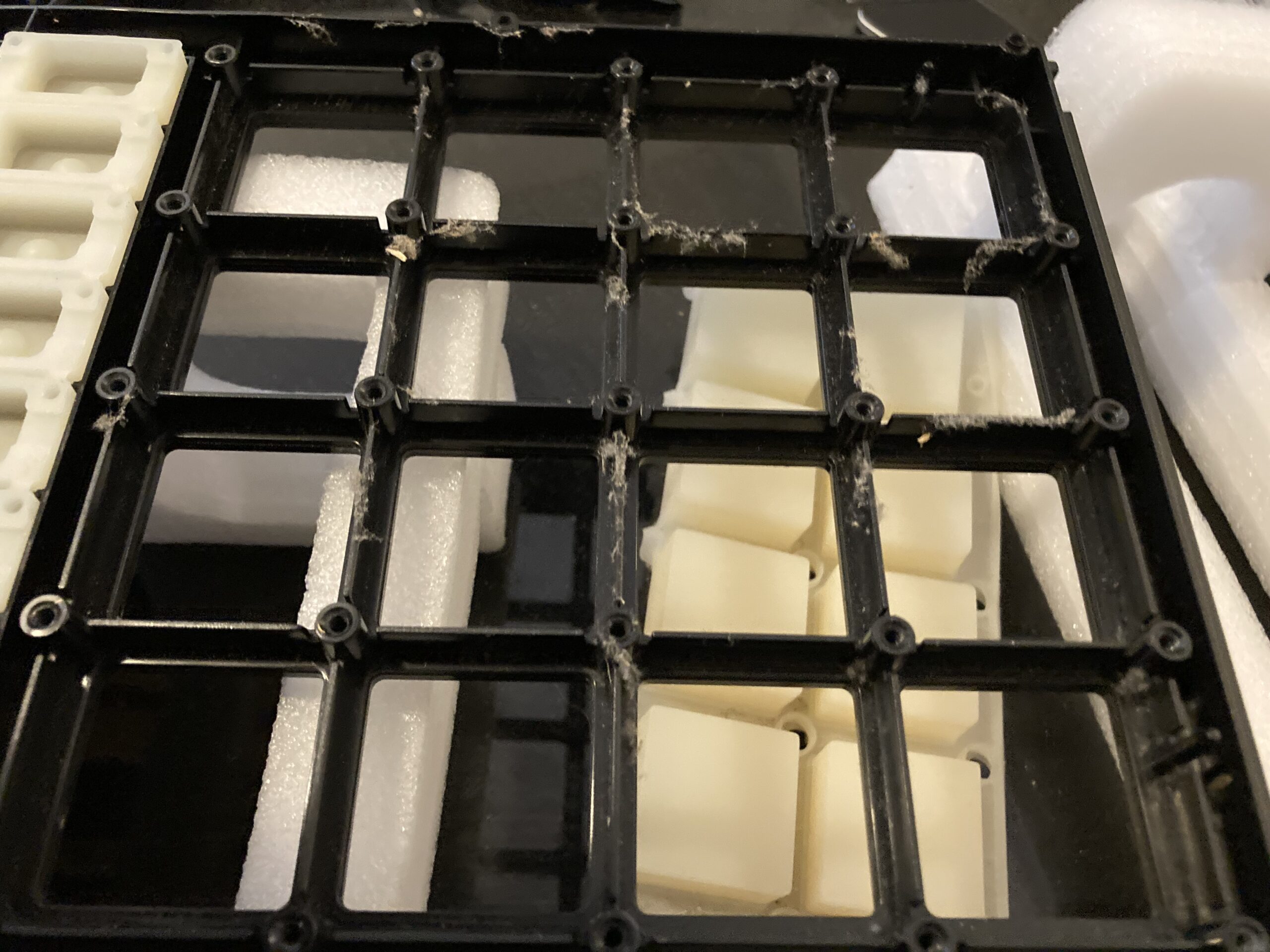

Inspect each component carefully. If you find dust or debris, clean it using alcohol and warm soapy water. Be sure to dry all components thoroughly before reassembly. A hairdryer on the lowest no heat setting can help speed up this process.

Maschine MK2 maintenance guide – Reassembly and Final Thoughts

Finally, apply Deoxit to your encoders and work it in by rotating the knobs. Then, reassemble using this Maschine MK2 maintenance guide by following the disassembly steps in reverse order.

Regular maintenance is essential, especially if you use your Maschine MK2 for gigs. With this guide, you can perform a comprehensive clean-up and disassembly in no more than two hours. This small time investment leads to a significant payoff – a well-functioning, efficient Maschine MK2 ready to create captivating soundscapes for your next film project.

Consider this not just a cleaning routine but a rejuvenating spa day for your Maschine MK2. Enjoy the enhanced performance and rediscover the joy of using your Maschine MK2 for audio production in filmmaking.
